Intern 4-20mA/0-5V/0-10V transmitter för CLS och CLT lastcell
Beskrivning
Amplifier integrated in load cell

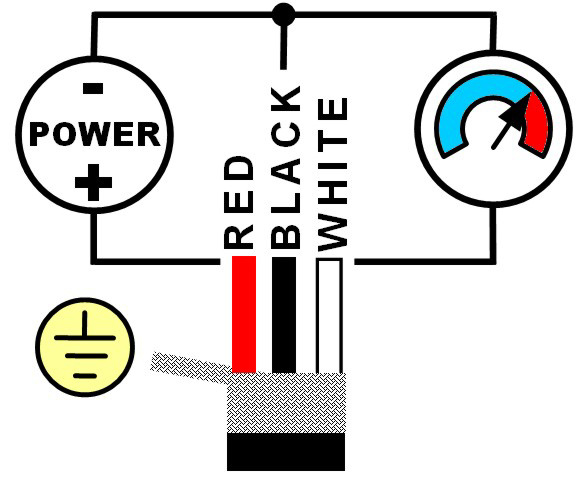

- 3 Wires
- Supply 12-28VDC
- Max resistance 470ohm
- Non Linearity ≤ ±0.03%
- Non Repeatability ≤ ±0.01%
- Temperature effect on zero (10°C) ≤ ±0.024%
- Temperature effect on sensitivity (10°C) ≤ ±0.017%
- Cable lenght 5m
- Respons frequency from 0.5 to 5 kHz
Specifikation
- Anslutningsmöjligheter: 4-20mA/0-10V (standard eller tillval)
